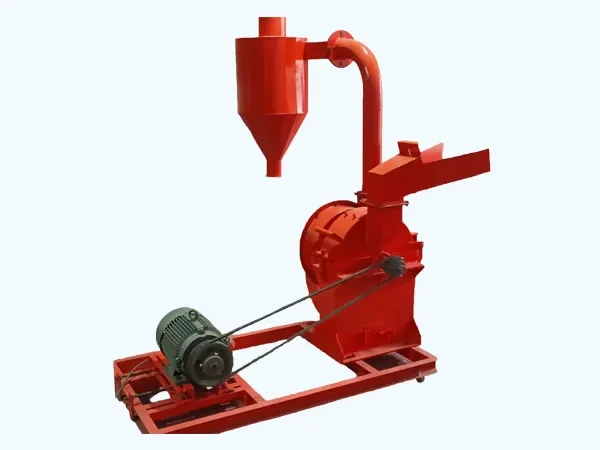

Single Chamber Pulveriser Machine

(0) 0 Reviews 0 Orders 0 Wish listed

₹1.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

The reason why we are unable to provide price information is due to daily price increases. Please collect the price information from GCD Mart when you purchase the product.

Technical Specification

Pulverizer Machine Size	Required HP	Production Per Hour Depends On Material	RPM	Material	Space Required
Single Chamber	Required HP	Production Per Hour Depends On Material	RPM	Material	Space Required
5″ x 10″	03 HP	10 – 15 Kg	3000	M.S & S.S 304	5′ x 5′ x 7′
06” x 12 “	05 HP	25 – 30 Kg	3000	M.S & S.S 304	5′ x 5′ x 7′
7″ x 14″	7.5 HP	40 – 60 Kg	2800	M.S & S.S 304	5′ x 5′ x 7′
8″ x 16″	10 HP	80 – 100 kg	2800	M.S & S.S 304	5′ x 5′ x 7′
10″ x 16″	15 HP	100 – 120 kg	2800	M.S & S.S 304	5′ x 5′ x 7′
14″ x 16″	20 HP	120 – 135 kg	2800	M.S & S.S 304	6′ x 6′ x 8′
12″ x 18″	25 HP	125 – 140 kg	2800	M.S & S.S 304	6′ x 6′ x 8′
12″ x 20″	30 HP	200 – 300 kg	2800	M.S & S.S 304	10′ x 10′ x 8′
20″ x 20″	40 HP	300 – 400 kg	2800	M.S & S.S 304	10′ x 10′ x 12′
20″ x 24″	50 HP	400 – 500 kg	2800	M.S & S.S 304	12′ x 12′ x 12′
